The
Versa/Deck Cart System easily lives up to its name.
Call to order your Custom
Platform Truck (609) 306-7933 |
 |
-
Versa/Deck Cart System offers almost
200-deck, caster, rail, and handle
combinations to create hard working carts that adapt to your needs.
-
Versatile, structural foam cart with
multiple handle and
caster options.
-
Sturdy, easy-to-clean deck resists
most chemicals and
damage from long-term exposure to weather.
-
Maximize deck space with outside deck
handles.
-
Choose the deck size, caster type, and
handle style to
create the exact configuration you need.
-
Decks are available in two sizes: 24"
x 48" and 30" x 60".
-
Deck colors: Blue or Gray.
|
|
| Common VERSA/Deck™
Configurations |
|
|
 |
|
 |
|
| 24"
x 48" |
|
24"
x 48" |
|
| R90181 Deck |
|
R90181 Deck |
|
| R92411 18" Handle |
|
Two R94817 48" Rails |
|
|
|
One R94815 48" Rail |
|
| 30"
x 60" |
|
30"
x 60" |
|
| R90281 Deck |
|
R90218 Deck
|
|
| R93011 24" Handle |
|
Two R96017 60" Rails |
|
|
|
One R96015 60" Rail |
|
 x
|
|
" |
|
|
| 24"
x 48" |
|
24"
x 48" |
|
|
| R90181 Deck |
|
R90181 Deck |
|
|
| One R92411 18" Handle |
|
Two R92418 24" Handles |
|
|
| Two
R94817 48" Rails |
|
|
|
|
| 30"
x 60" |
|
30"
x 60" |
|
|
| R90281 Deck |
|
R90281 Deck |
|
|
| One R93011 24" Handle |
|
Two R93019 30" Handles |
|
|
| Two R96017 60" Rails |
|
|
|
|
|
|
|
|
|
|
|
 |
DECK
STYLE |
|
 |
CASTERS
& WHEELS |
| Holes are drilled
for handle ordered. |
|
Caster &
Wheel choices allow you to resolve problems of noise
control, floor protection, impact or abrasion resistance, or load
capacity. |
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
24" x 48" (610mm x 1219mm) |
|
|
|
|
|
30" x 60" (762mm x 1524mm) |
|
|
|
|
|
|
|
|
|
|
|
Color: Gray or Blue |
|
|
|
|
|
|
|
|
 |
PRICING FOR 24" X 48"
DECKS & CASTERS
Call to order your Custom Platform Truck (609) 306-7933
FREE SHIPPING!
|
|
Model
No. |
Caster
Type |
Caster Size |
Loading
Rating
|
Ship. Wt.
w/o handles |
Price |
| Inches |
mm |
| R90152 |
Moldon Rubber |
5 |
127 |
1400 lbs. |
65 lbs. |
$362 |
| R90181 |
Pneumatic |
8 |
203 |
1200 lbs. |
69 lbs. |
$403 |
| R90162 |
Polyolefin |
6 |
152 |
1500 lbs. |
61 lbs. |
$363 |
| R90163 |
Polyurethane |
6 |
152 |
2000 lbs. |
61 lbs. |
$426 |
| R90182 |
Moldon Rubber |
8 |
203 |
2000 lbs. |
81 lbs. |
$375 |
| R90184 |
Polyolefin |
8 |
203 |
1500 lbs. |
65 lbs. |
$407 |
| R90110 |
Pneumatic |
10 |
254 |
1600 lbs. |
77 lbs. |
$406 |
| R90153 |
Performa |
5 |
127 |
1500 lbs. |
57 lbs. |
$403 |
| R90164 |
Pro-Tech Non-Marking |
6 |
152 |
2700 lbs. |
61 lbs. |
$398 |
| R90183 |
Pro-Tech Non-Marking |
8 |
203 |
2700 lbs. |
61 lbs. |
$426 |
| R90185 |
Gray Round Performa |
8 |
203 |
2400 lbs. |
61 lbs. |
$435 |
|
|
|
|
|
Note: Decks are available in Gray or
Blue. Specify color when ordering. |
|
|
|
|
|
PRICING FOR 30"X 60"
DECKS & CASTERS
Call to order your Custom Platform Truck (609) 306-7933
FREE SHIPPING!
|
|
|
|
|
Model
No. |
Caster
Type |
Caster Size |
Loading
Rating |
Ship. Wt.
w/o handles |
Price |
| Inches |
mm |
| R90252 |
Moldon Rubber |
5 |
127 |
1400 lbs. |
89 lbs. |
$374 |
| R90281 |
Pneumatic |
8 |
203 |
1200 lbs. |
93 lbs. |
$425 |
| R90262 |
Polyolefin |
6 |
152 |
1500 lbs. |
85 lbs. |
$392 |
| R90263 |
Polyurethane |
6 |
152 |
2000 lbs. |
85 lbs. |
$448 |
| R90282 |
Moldon Rubber |
8 |
203 |
2000 lbs. |
105 lbs. |
$397 |
| R90284 |
Polyolefin |
8 |
203 |
1500 lbs. |
89 lbs. |
$429 |
| R90210 |
Pneumatic |
10 |
254 |
1600 lbs. |
101 lbs. |
$428 |
| R90253 |
Performa |
5 |
127 |
1500 lbs. |
81 lbs. |
$425 |
| R90264 |
Pro-Tech Non-Marking |
6 |
152 |
2700 lbs. |
85 lbs. |
$421 |
| R90283 |
Pro-Tech Non-Marking |
8 |
203 |
2700 lbs. |
85 lbs. |
$448 |
| R90285 |
Gray Round Performa |
8 |
203 |
2400 lbs. |
85 lbs. |
$457 |
|
|
|
Note: Decks are available in
Gray or Blue. Specify color when ordering. |
 |
|
|
|

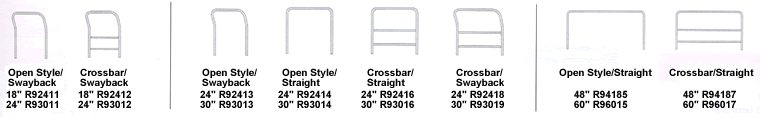

| HANDLE
- OUTSIDE DECK |
HANDLE -
INDECK |
HANDLE
RAILS - INDECK |
 |
|
|
|
 |
HANDLES & RAILS FOR
24" X 48" VERSA/DECK CART
Call to order your Custom Platform Truck (609) 306-7933
FREE SHIPPING!
|
|
Model
No. |
Size |
Style |
Handle |
Color |
Ship.
Wt. |
Price |
| Inches |
mm |
| Outside Deck |
| R92411 |
18 |
457 |
Open |
Swayback |
Gray |
5 |
$47 |
| R92412 |
18 |
457 |
Crossbar |
Swayback |
Gray |
6 |
$58 |
| Indeck |
| R92413 |
24 |
610 |
Open |
Swayback |
Gray |
6 |
$47 |
| R92414 |
24 |
610 |
Open |
Straight |
Gray |
6 |
$47 |
| R92416 |
24 |
610 |
Crossbar |
Straight |
Gray |
8 |
$59 |
| R92418 |
24 |
610 |
Crossbar |
Swayback |
Gray |
8 |
$59 |
| Handle Rails
Indeck |
| R94815 |
48 |
1219 |
Open |
Straight |
Gray |
7 |
$49 |
| R94817 |
48 |
1219 |
Crossbar |
Straight |
Gray |
14 |
$57 |
|
|
|
|
|
|
|
PRICING FOR HANDLES
& RAILS FOR 30" X 60" VERSA/DECK CART
Call to order your Custom Platform Truck (609) 306-7933
FREE SHIPPING!
|
|
Model
No. |
Size |
Style |
Handle |
Color |
Ship.
Wt. |
Price |
| Inches |
mm |
| Outside Deck |
| R93011 |
24 |
610 |
Open |
Swayback |
Gray |
9 |
$47 |
| R93012 |
24 |
610 |
Crossbar |
Swayback |
Gray |
10 |
$59 |
| Indeck |
| R93013 |
30 |
762 |
Open |
Swayback |
Gray |
10 |
$47 |
| R93014 |
30 |
762 |
Open |
Straight |
Gray |
10 |
$50 |
| R93016 |
30 |
762 |
Crossbar |
Straight |
Gray |
12 |
$61 |
| R93019 |
30 |
762 |
Crossbar |
Swayback |
Gray |
12 |
$61 |
| Handle Rails
Indeck |
| R96015 |
60 |
1524 |
Open |
Straight |
Gray |
8 |
$51 |
| R96017 |
60 |
1524 |
Crossbar |
Straight |
Gray |
16 |
$61 |
Call to order your Custom Platform
Truck (609) 306-7933 FREE SHIPPING!
|
|
|
|
|
|
