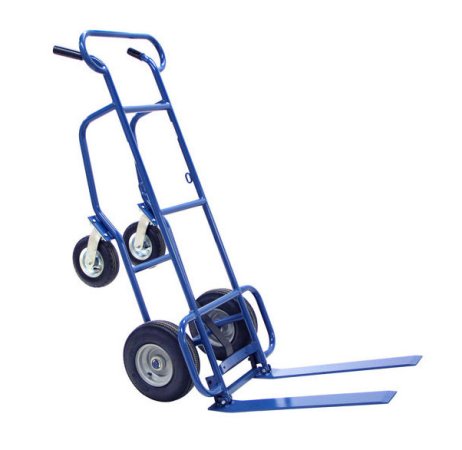

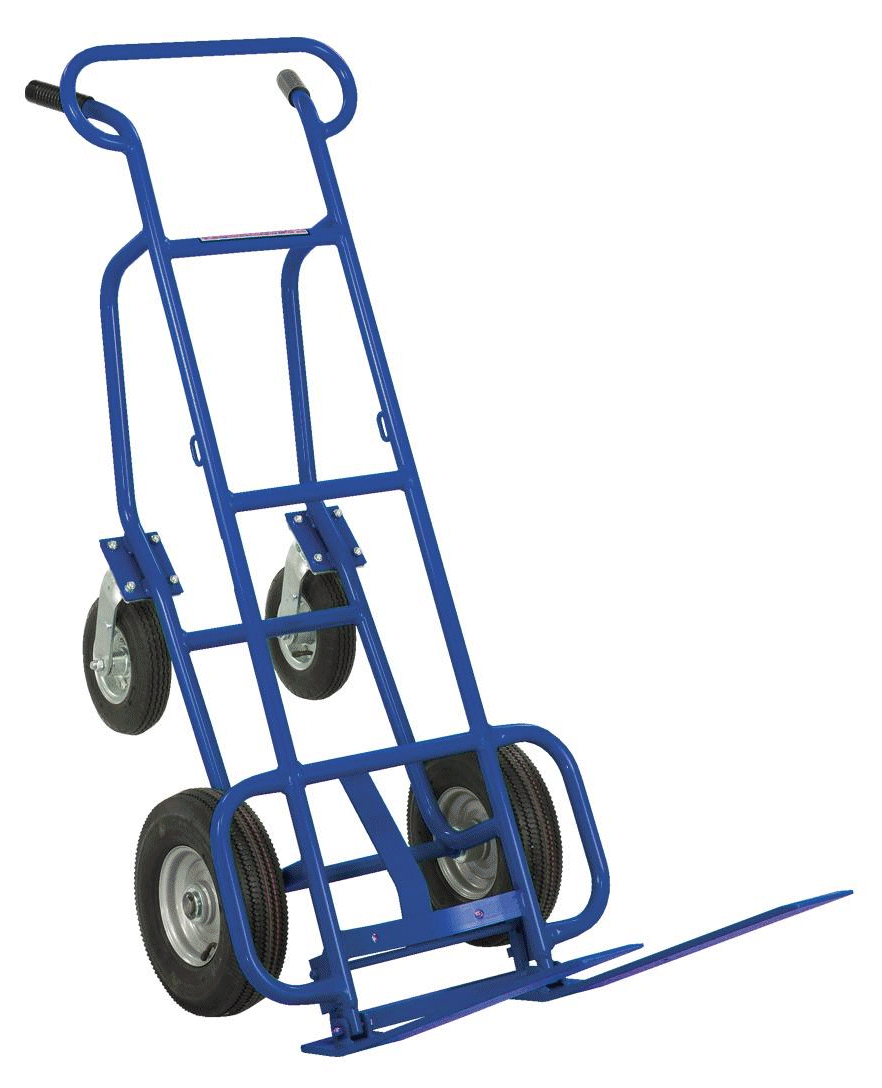

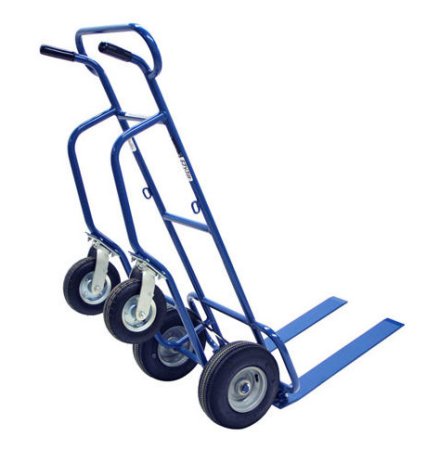

Valley Craft Big Steel HVAC Hand Truck – 600 lb. Capacity – SKU: F80233U5
Safely transport large heating, ventilation, and air conditioning equipment with the
Valley Craft Big Steel HVAC Hand Truck. Engineered specifically for HVAC contractors,
delivery professionals, and commercial installers, this heavy-duty
HVAC hand truck features a 600 lb. load capacity,
a rugged welded steel frame, and a stable 4-wheel design that makes
moving bulky air conditioners, furnaces, heat pumps, rooftop units, and palletized
equipment easier and safer.
Unlike standard hand trucks, the Valley Craft F80233U5 includes
24-inch folding steel forks, a foot-operated trip spring,
oversized pneumatic front wheels, and rear swivel casters that provide exceptional
maneuverability across warehouses, job sites, loading docks, and commercial buildings.
Whether you're delivering HVAC equipment or installing new systems, this professional-grade
hand truck helps improve productivity while reducing operator fatigue.
Key Features
- 600 lb. Capacity: Designed for transporting heavy HVAC equipment and palletized loads.
- Heavy-Duty 4-Wheel Design: Improves balance, stability, and control during transport.

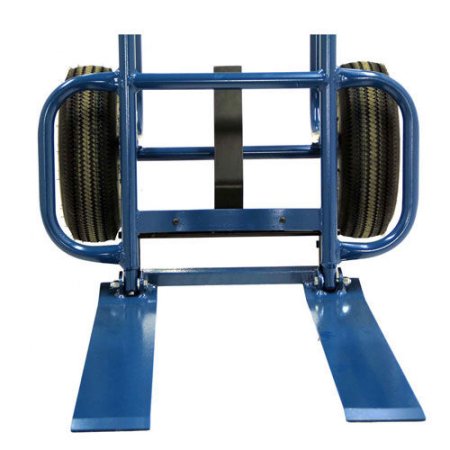

- 24" Folding Steel Forks: Easily slide beneath large equipment and fold up for compact storage.
- Foot-Operated Trip Spring: Quickly raises or lowers the forks without bending over.

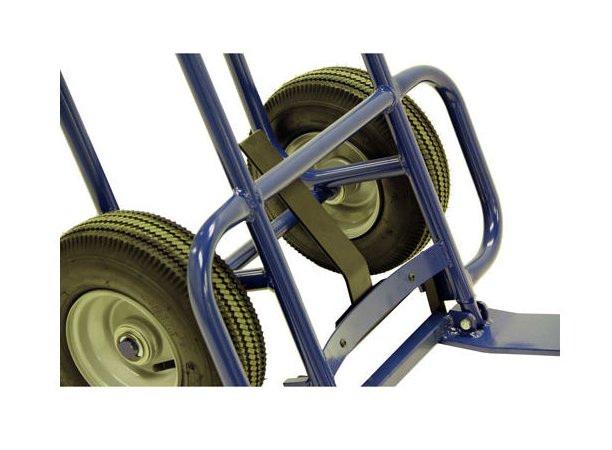

- 12" Pneumatic Front Wheels: Roll smoothly over pavement, gravel, thresholds, and job site terrain.

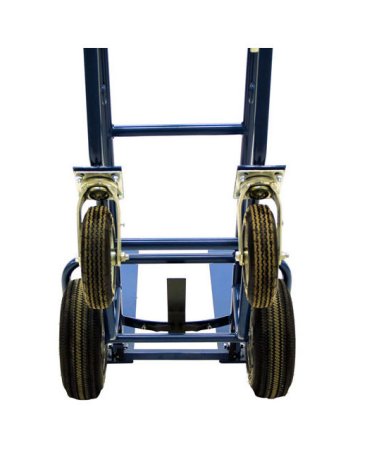

- 8" Rear Semi-Pneumatic Swivel Casters: Increase maneuverability in confined work areas.
- Twin Rubber Grip Handles & Full Loop Handle: Multiple handling positions provide greater comfort and leverage.
- Oversized Protective Fenders: Help stabilize and protect large or irregularly shaped loads.
- Heavy-Gauge Welded Steel Construction: Built for years of commercial service.
- Made in the USA: Professional quality backed by Valley Craft craftsmanship.
Why Choose the Valley Craft F80233U5?
HVAC equipment can be awkward, bulky, and difficult to maneuver using conventional hand
trucks. The Valley Craft Big Steel HVAC Hand Truck is specifically engineered to simplify
transporting large heating and cooling systems while improving operator safety. The four-wheel
design carries the weight of the load more efficiently, reducing strain during long deliveries
and installations.

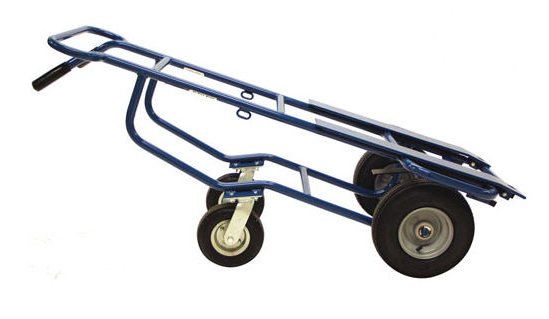

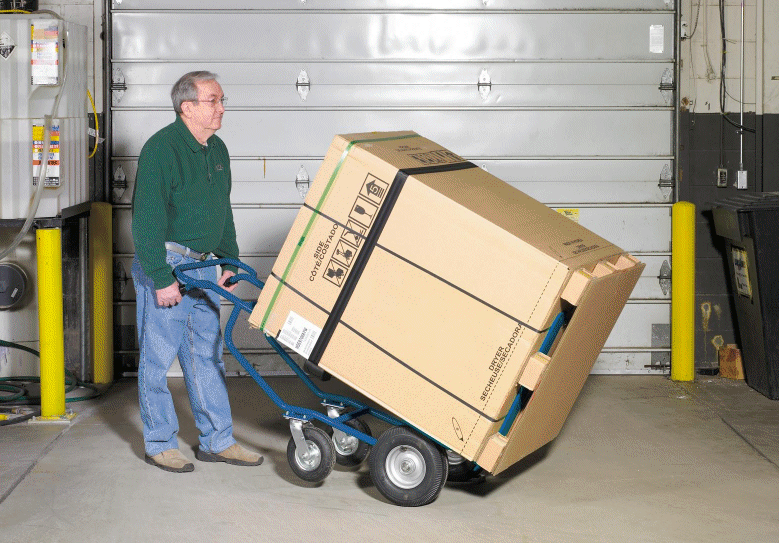

The folding fork system allows the truck to function as both a traditional hand truck and
a low-profile equipment cart. Simply lower the forks to slide underneath the load, tilt the
truck back to lock the forks into place, and transport equipment with greater stability and control.
Ideal Applications
- Commercial HVAC installation
- Residential HVAC equipment delivery
- Air conditioner transport
- Heat pump installation
- Furnace moving
- Boiler transport
- Warehouse material handling
- Mechanical contractors
- Equipment rental companies
- Industrial maintenance departments
Specifications
| Product Name |
Valley Craft Big Steel HVAC Hand Truck |
| SKU |
F80233U5 |
| Load Capacity |
600 lbs. |
| Construction |
Heavy-Gauge Welded Steel |
| Fork Size |
24" L x 4" W |
| Distance Between Forks |
9-3/4" |
| Front Wheels |
(2) 12" Pneumatic |
| Rear Wheels |
(2) 8" Semi-Pneumatic Swivel Casters |
| Handle Style |
Twin Rubber Grip Handles with Full Loop Handle |
| Fork Operation |
Foot-Operated Folding Forks with Trip Spring |
| Overall Dimensions |
26" W x 22" D x 61" H |
| Product Weight |
96 lbs. |
| Finish |
Blue Powder Coat |
| Country of Manufacture |
Made in the USA |
| Application |
HVAC Equipment, Air Conditioners, Furnaces, Heat Pumps, Rooftop Units, and Large Bulky Equipment |
